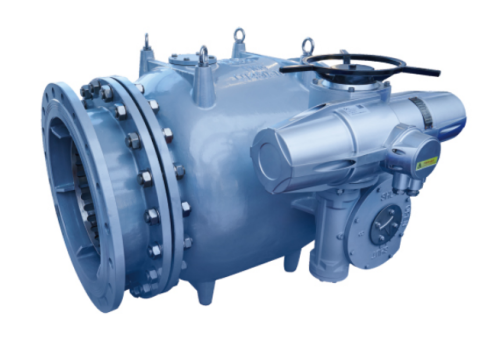

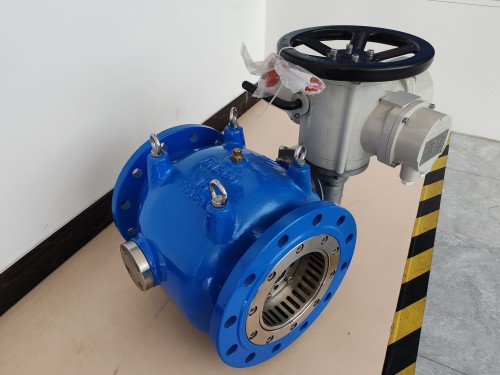

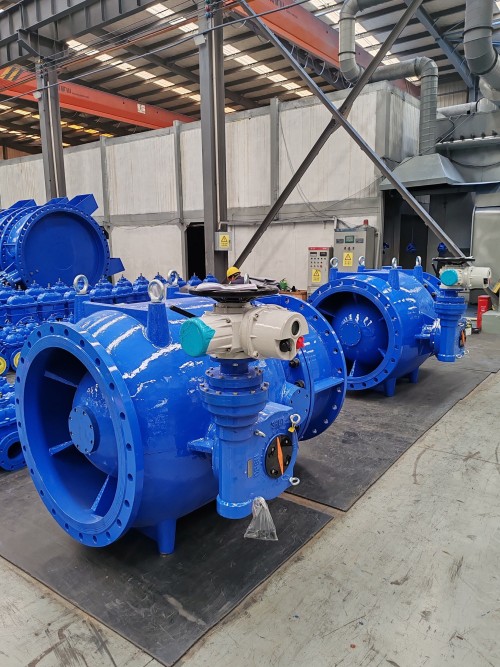

Piston Type Flow and Pressure Regulating Valve - Product Introduction
The piston type flow and pressure regulating valve is a speed regulating valve developed based on the characteristics of fluid mechanics. It has been widely applied in hydropower stations, water diversion, water supply and other related fields; Our series of flow and pressure regulating valves are not only suitable for clean water, but also have good adaptability to dry natural rivers, lakes and light sewage.
Key Features:
1. Linear Adjustment: The opening degree and flow rate of the valve are linear, enabling precise adjustment to meet different flow control requirements.
2. Long Service Life: Reasonably designed flow channels and appropriately selected materials effectively ensure the long service life of the valve, reducing maintenance costs and frequency.
3. Driving Power: Adopting a hydraulic balance design, the guide rod is welded with copper alloy, which ensures smoother and more reliable operation of the piston, improving the overall stability and service life of the valve.
4. Easy Installation: It can be installed vertically, horizontally or in a suspended manner, and can be mounted on any side of the pipeline, greatly enhancing installation flexibility and adapting to various on-site working conditions.
5. Reliable Sealing: The valve seat achieves a bubble-level sealing effect, which can effectively prevent scratches on the valve seat and further extend the service life of the valve seat.

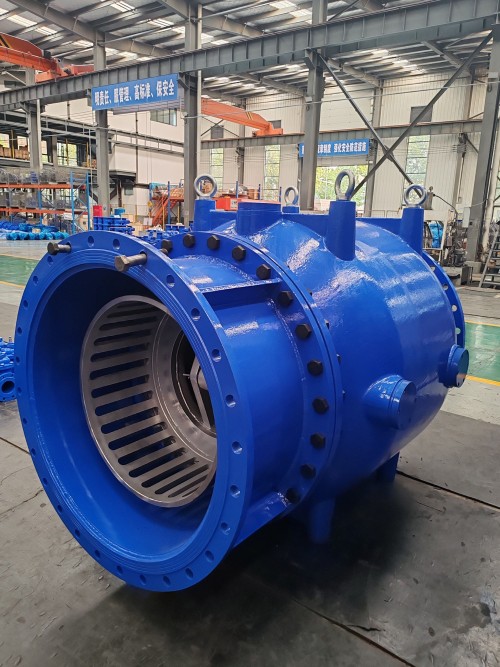

6. Anti-Vibration: Spiral small holes are evenly distributed on the sleeve, and the energy is dissipated through the collision of water columns, which can effectively prevent severe vibrations caused by energy dissipation and ensure stable operation of the valve.
7. Anti-Cavitation: The special tapered hole design accelerates the flow of water through the sleeve, making cavitation occur at the center of the valve, thus effectively preventing damage to valve components caused by cavitation.
